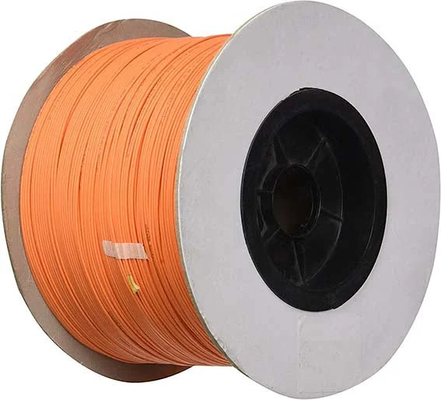

Indoor Optic Cable 12 24core Multimode OM1 OM2 OM3 OM4 Distribution Use
| Plaats van herkomst | Shandong, China |
|---|---|
| Merknaam | EBOCOM |
| Certificering | ISO TLC |
| Modelnummer | GJFJV-12B1 |
| Min. bestelaantal | 2000M |
| Prijs | EXW ≥2000m $0.16/M ≥5000m $0.14/M |
| Verpakking Details | 12. De grootte van de trommel kan worden ontworpen, de details zullen worden berekend voor de geschi |
| Levertijd | 5 tot 8 dagen |
| Betalingscondities | T/T |
| Levering vermogen | 5000 km/dag |
Neem contact met me op voor gratis monsters en coupons.
WatAPP:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Productnaam | GJFJV/GJFJH | Jacket | Pvc /LSZH |
|---|---|---|---|
| Sterkte-element | Aramidgaren | Zuivel | Eenmalige modus/meerdere modi |
| Merken | Ebocom of OEM | ||
| Markeren | Multimode Indoor Optic Cable,OM1 Indoor Optic Cable,Distribution Indoor Optic Cable |
||
Productomschrijving
Description

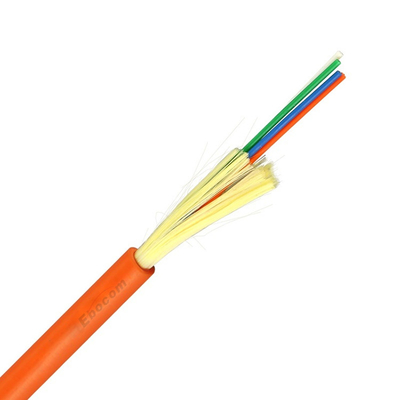

Indoor optical cables are a high-speed data transmission medium used to connect devices within buildings or data centers. They consist of optical fibers encased in protective sheaths and are designed for data transmission over relatively short distances. When optical cables are used indoors, safety and practicality are the main considerations. Therefore, optical cables for indoor use should be free of metals, halogens, be highly flexible, lightweight, and feature a completely dry design.
In recent years, indoor optical cables have become an important component of modern communication networks, as they can provide fast and reliable connections for enterprises, families and other organizations. Whether you are building a new data center, upgrading telecommunications infrastructure, or simply hoping to improve the speed and reliability of your internet connection, indoor optical cables can offer powerful solutions to meet your needs.
Applications
Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.
Mechanical Specifications
| Cable Model | Outer Diameter
(mm) |
Weight
(kg/km) |
Tensile Strength(N) | Crush Resistance(N/100mm) | Bending Radius | Jacket Thickness(mm) | |||
| Long term | Short term | Long term | Short term | Dynamic | Static | ||||
| GJFJV-2F | 3.6±0.2 | 12.5 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.45±0.05 |
| GJFJV-4F | 4.7±0.2 | 17.6 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.8±0.1 |
| GJFJV-6F | 5.2±0.2 | 22.8 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-8F | 5.8±0.2 | 26.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-12F | 6.3±0.2 | 32.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-24F | 8.0±0.2 | 53 | 200 | 660 | 300 | 1000 | 20D | 10D | 1.0±0.1 |
