Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3

  • Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3
  • Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3
  • Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3
Plaats van herkomst Shandong, China
Merknaam EBOCOM
Certificering ISO TLC
Modelnummer GJFJV
Min. bestelaantal 2000 m
Prijs EXW ≥2000m $0.18/M ≥5000m $0.14/M
Verpakking Details 12. De grootte van de trommel kan worden ontworpen, de details zullen worden berekend voor de geschi
Levertijd 5 tot 8 dagen
Betalingscondities T/T
Levering vermogen 5000 km/dag

Neem contact met me op voor gratis monsters en coupons.

WatAPP:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Als u zich zorgen maakt, bieden we 24-uurs online hulp.

x
Productdetails
Model Strak buffer glasvezelkabel Merken Ebocom/OEM
Lange Op maat Kabeljas PVC, LSZH, PE
Vezeltype SM/MM Sterktelid Garens van de soort gebruikt voor de vervaardiging van garens
Markeren

G652D Indoor Colored Optical Fiber Cable

,

24 Core Optical Fiber Cable
Laat een bericht achter
Productomschrijving

Product Introduction:

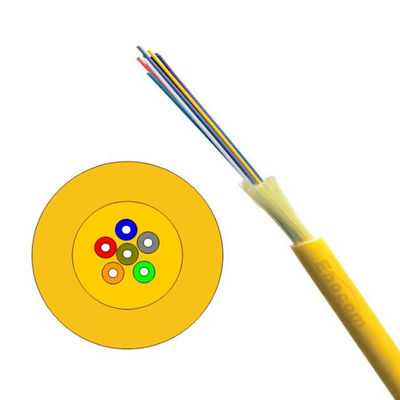

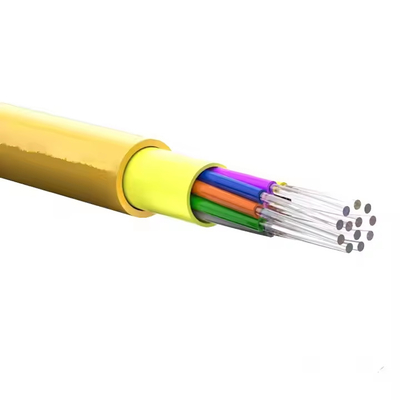

GJFJV type tight-buffered optical fiber bundle cable is made by evenly winding aramid yarn or high-strength glass yarn tight-buffered optical fibers as reinforcing members, and then covered with polyvinyl chloride sheath.



Features:

  1. Enhanced protection: The tight buffer provides excellent protection against physical damage, moisture, and environmental factors, ensuring the integrity and reliability of the optical fibers.
  2. Increased flexibility: The tight buffer layer makes the cable more flexible and allows for easier termination and handling during installation and maintenance processes.
  3. Small form factor: Due to the compact design, tight buffer cables have smaller overall diameters, making them easier to manage and install in limited space environments.
  4. Direct termination capabilities: The tight buffer design allows for direct termination of connectors onto the fiber, eliminating the need for additional protective elements like splice closures.



Applications:

.Suitable for Indoor distribution
·Pigtail jumper, patch cord
·Optical connection of Communication equipment and connection machine.
·Floor installation, maintenance friendly.









Optical Characteristics

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22         16
G657A1 0.36/0.22         10
G657A2 0.36/0.22         7.5
50/125   3.0/1.0 ≥500/500     30
62.2/125   3.0/1.0 ≥200/500     30
OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5
