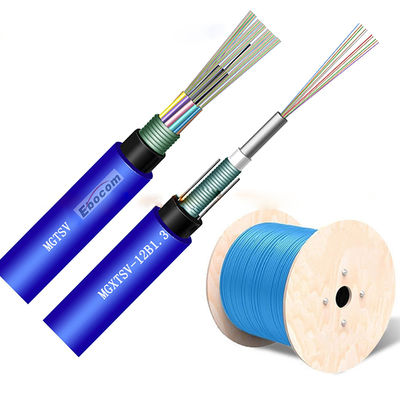

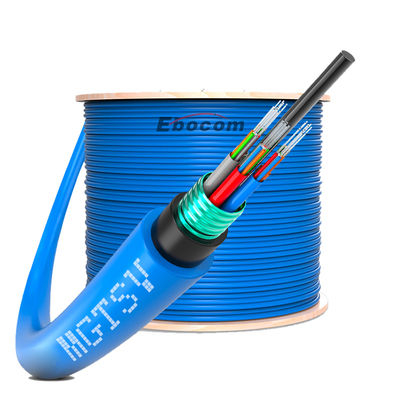

Flame Retardant Mining Fiber Cable MGTSV G652D 12 24 36 48 core Double Armoured for Communication
Flame retardant mining fiber cable
,MGTSV G652D armored optic cable
,Double armoured communication cable
Product description
MGTSV is suitable for coal, gold, and iron mines. Its flame-retardant and rodent-proof properties make it an ideal choice for mining operations. It is particularly suitable for accident-prone mines, ensuring uninterrupted communication and minimizing losses in the event of an accident.
The steel armor helps protect the cable from rodent bites and provides bulletproof protection. The double-sheath structure offers excellent moisture resistance and pressure resistance. Furthermore, the outer sheath is flame-retardant, and the loose-tube material itself has excellent hydrolysis resistance. Waterproof performance ensures safety during underground operations
Application
• Certified for use by national authorities
• Intended for mines, mine shafts and cable trays used for mining applications
2.Features
Excellent fire resistance.
High-strength, hydrolysis-resistant loose-sleeve tubing.

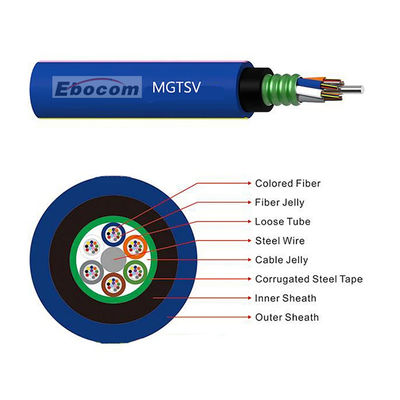

Double-layer wrapping and single-layer reinforcement design provide superior compressive strength, waterproofing, and rodent resistance. The loose-sleeve tubing is wrapped in non-woven fabric for waterproofing. Special internal filling ensures optimal fiber protection.
Blue PVC outer layer: fire resistant; blue for easy identification.
Compressive strength and flexibility.
3. Technical parameters
| Cable Type | Fiber Count | Tubes+Fills | Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Term N/100m |
Bending Radius Static/Dynamic mm |
| MGTSV-2～6 | 2～60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62～72 | 62～72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74～96 | 74～96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98～120 | 98～120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122～144 | 122～144 | 12 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146～216 | 146～216 | 18 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
